- Compact High-Power Amplification：Weighs 46g, 7.3 x 3.8 x 1cm. Delivers up to 2000mW (33dBm) output with 15-18dB transmit gain, ideal for drones, UAVs, and RC equipment. CNC aluminum casing for durability.
- Broad Compatibility：Supports 5.8GHz (5.0–5.875GHz) with bi-directional amplification. Compatible with drones, routers, IP cameras, and RC devices. Expands WiFi coverage by 10–20x.
- Plug-and-Play：Includes SMA/RP-SMA connectors, 20cm cable, and 5V–16V DC power adapters. No software needed—just plug in and boost the signal.
- Robust Build & Thermal Management：CNC aluminum case for anti-interference and heat dissipation. Operates from -20°C to +70°C with ≤3.5dB noise figure for stable performance.
- Safety & Compliance：CE/FCC/RoHS certified, includes 1-year warranty, OEM/ODM support. Avoid use near medical devices or flammable materials. Dispose per local regulations.

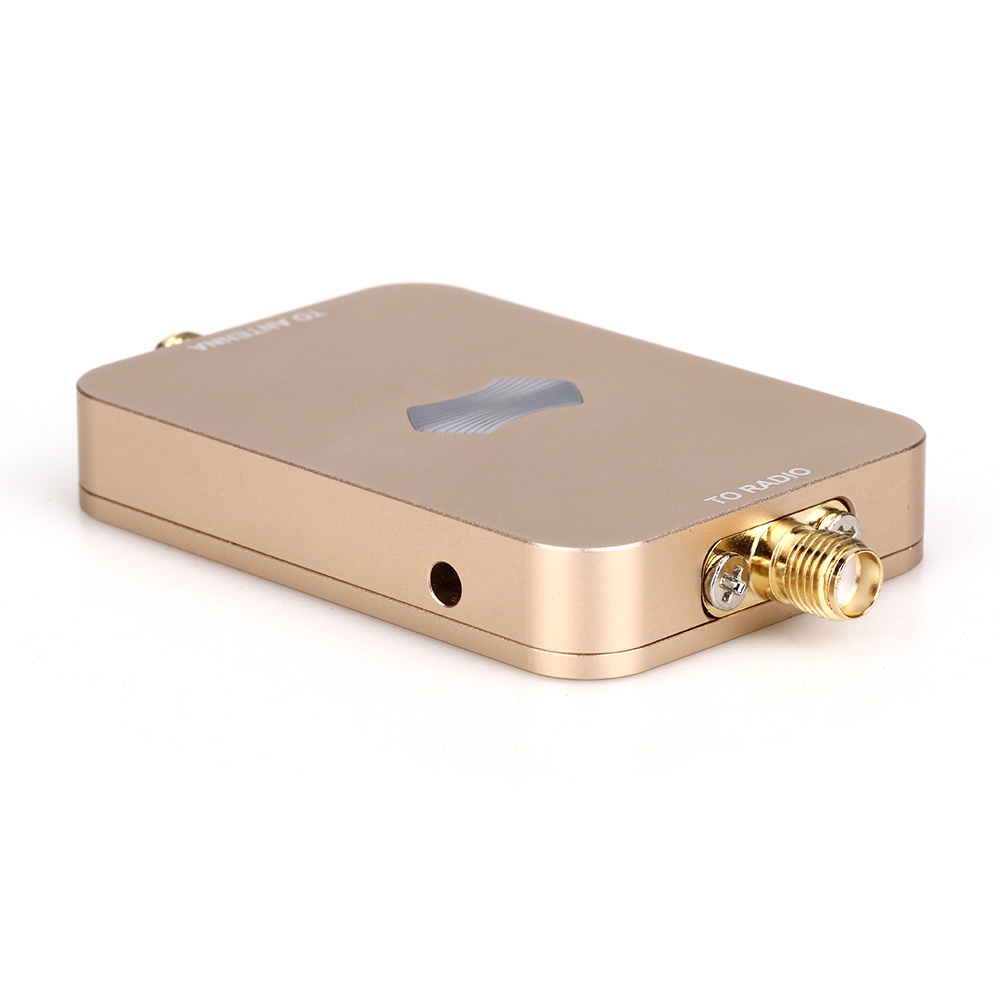

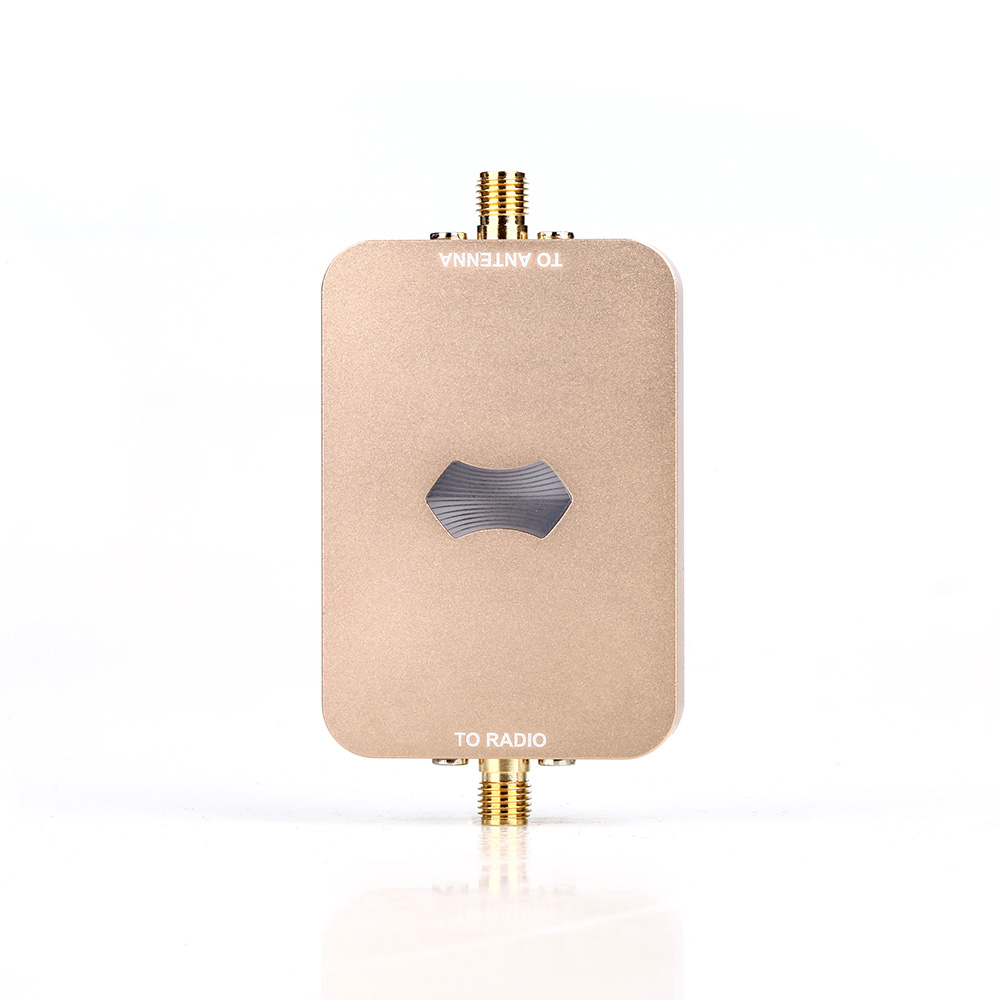

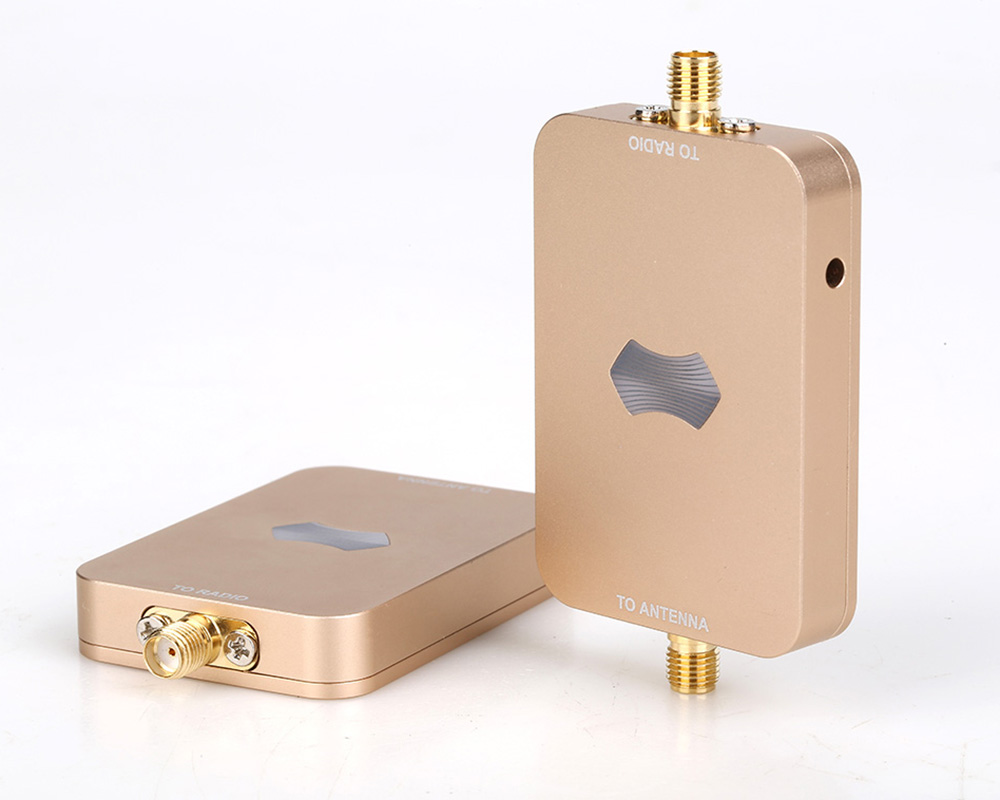

Sunhans eSunRC 2000mW 5.8GHz WiFi Signal Booster-33dBm FPV Drone Amplifier
Long-range drone and FPV operations on 5.8GHz often suffer from signal attenuation and interference. Using a compact 2000mW (33dBm) WiFi signal booster is engineered specifically for UAV, drone, and RC communication links, delivering high transmit gain in a lightweight, flight-friendly form factor.
Plug-and-Play Integration with Certified Safety Compliance
Designed for fast deployment without software configuration:
- Long-range UAV control links
- FPV drone video transmission
- RC signal extension
- Industrial inspection drones
- Wireless IP camera range boosting
- 5.8GHz router signal enhancement
Compliance and support:
- CE / FCC / RoHS certified
- 1-year warranty
- OEM / ODM customization available
- Multilingual documentation support
Safety guidance:
Do not operate near sensitive medical equipment or flammable environments. Follow local electronic disposal regulations.
[46g Lightweight | 5.8GHz Dedicated | 33dBm Power | 1-Year Warranty]
| Specification | Details |
|---|---|
| Operating Range | 5.0 ~ 5.875 GHz |
| Operating Mode | Bi-directional, half-duplex, time division duplex (senses RF and switches between receiving and transmitting modes) |
| Connector Type | SMA Receptacle 50ohm, To radio SMA female (hole inside), To antenna RP-SMA female (pin inside) |
| Input Power | 0 ~ 20 dBm |
| Transmit Gain | 15-18 dB |
| Output Power | 2000mW (33dBm) |
| Receiver Gain | ≤ 12 dB |
| Noise Figure | ≤ 3.5 dB typical |
| Frequency Response | ±1 dB over operating range |
| Supported Voltages | 5V ~ 16V/2A DC |
| Operating Temperature | -20°C to + 70°C |
| Operating Humidity | Up to 75% relative humidity |
| Material | Cast Aluminum |
| Booster Weight | 46g |
| Booster Size | 7.3 x 3.8 x 1 cm |

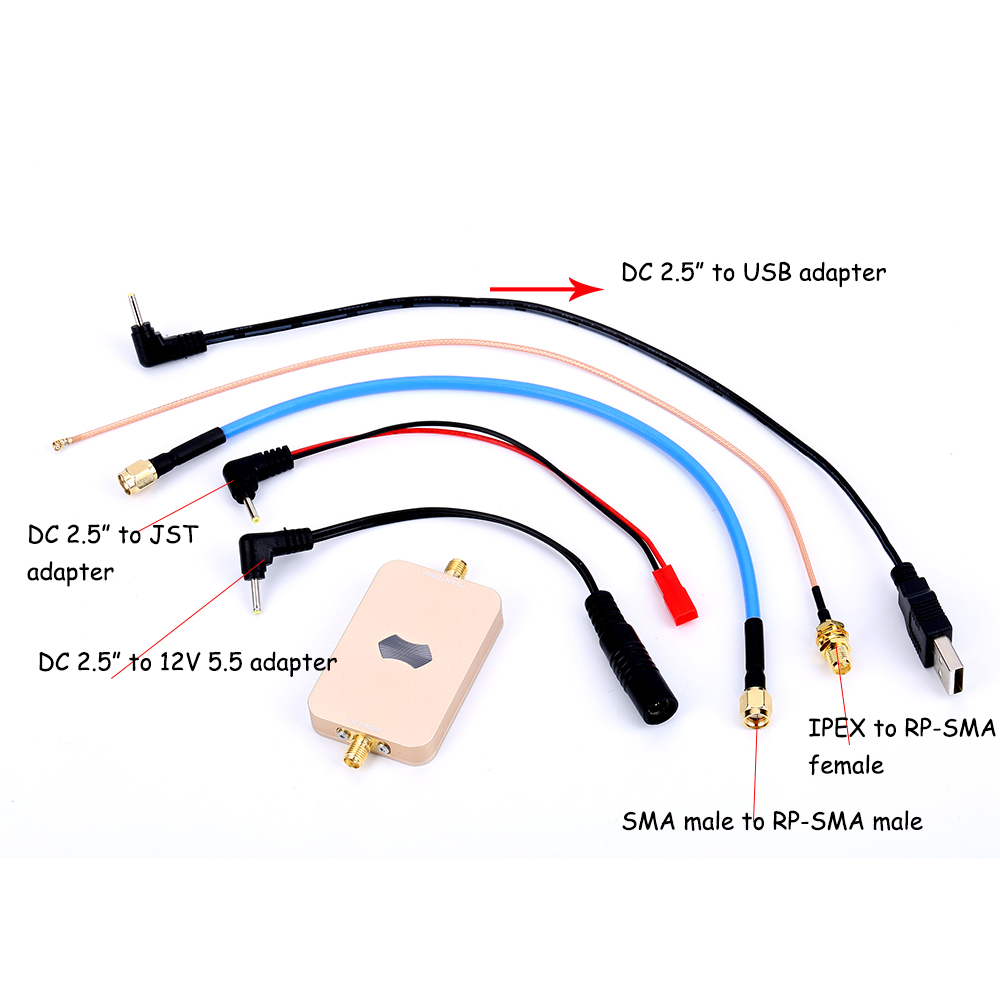

Package Contents:
| Item | Quantity |
|---|---|
| SH-RC58G2W eSunRc WiFi Booster | 1 x |
| RG141 20cm Cable SMA Male to RP-SMA Male | 1 x |
| DC 2.5” to 12V 5.5” Adapter | 1 x |
| DC 2.5” to USB Adapter | 1 x |
| DC 2.5” to JST Adapter | 1 x |
| Mounting Velcro | 1 x |
| User Manual | 1 x |
