- Ultra-Compact Drone Signal Amplifier：Weighs 46g, dimensions 7.3 x 3.8 x 1cm. CNC aluminum booster for seamless integration with DJI/Yuneec/XIRO drones.
- 3000mW High-Power 2.4GHz Boost：35dBm output, 15-18dB gain, boosts WiFi coverage by 20× with stable signal transmission (≤3.5dB noise).
- Military-Grade Durability：CNC cast aluminum for EMI shielding, IP67-rated, operates from -20°C to +70°C, 75% humidity resistance.
- Universal Compatibility & Plug-and-Play：Supports 5-16V DC input, SMA/RP-SMA connectors for DJI/3DR/XIRO/Parrot, includes adapters and mounting velcro.
- Enhanced FPV Performance：3.5dB ultra-low noise receiver for stable control and FPV signals, optimized power for extended flight times.

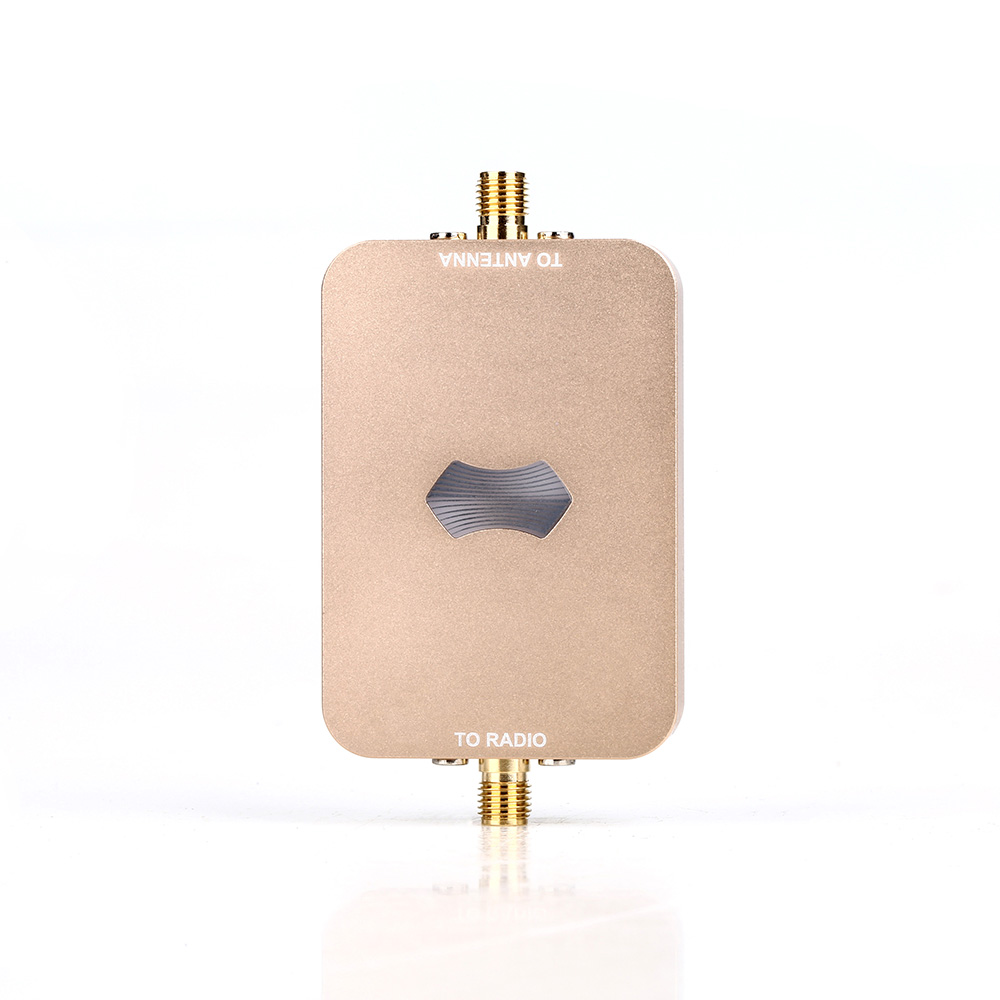

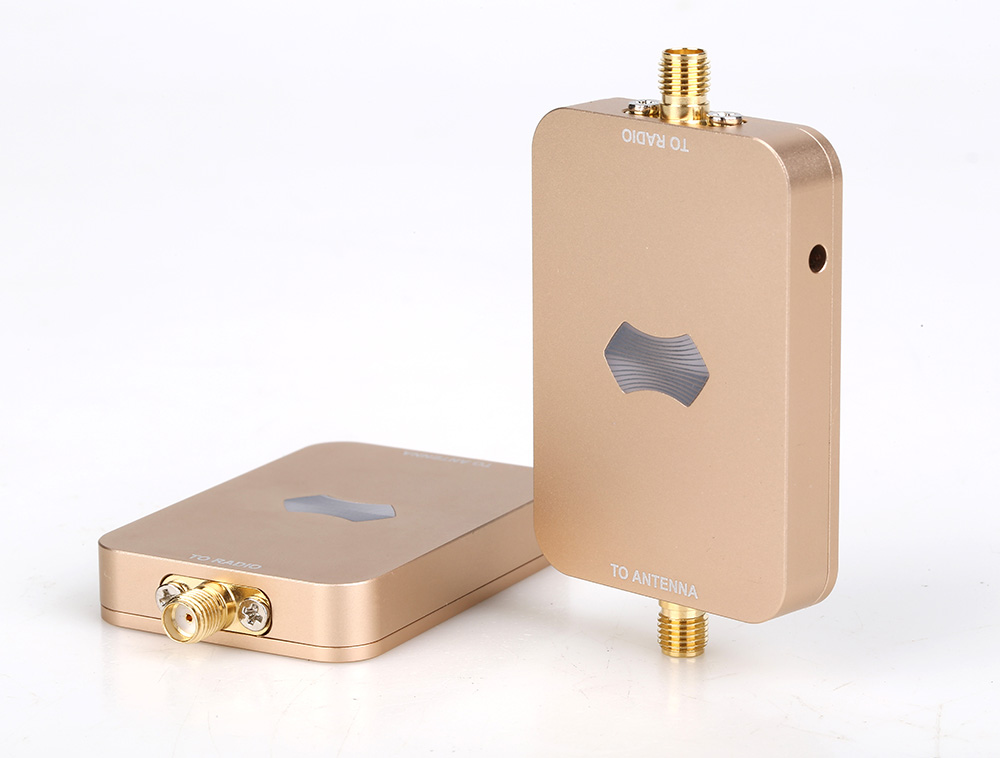

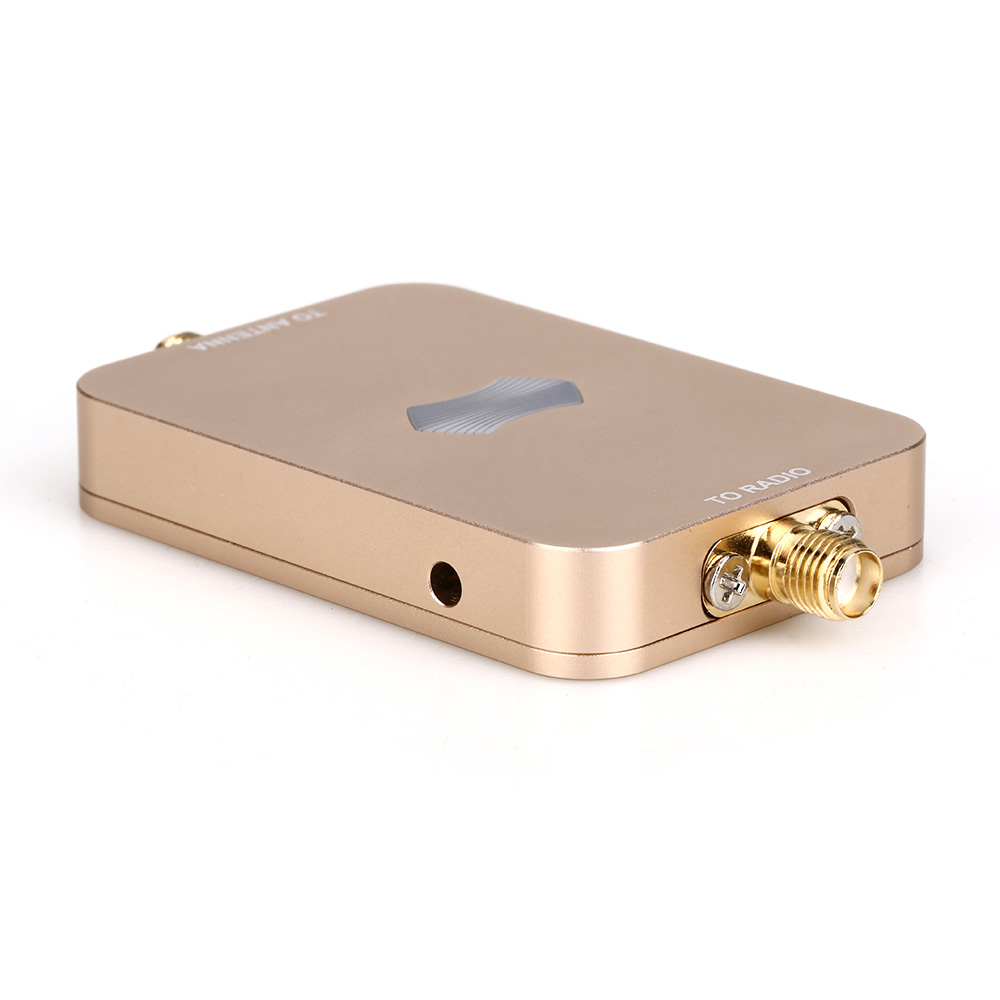

Sunhans eSunRC 3000mW 2.4GHz 35dBm WiFi Signal Booster for DJI & RC Drones
Standard drone controllers and 2.4GHz FPV links often experience signal drop and control latency in long-range or interference-heavy environments. This ultra-compact 3000mW (35dBm) wireless signal booster is purpose-built for DJI and compatible RC drone systems to significantly increase link stability and control distance.
Compact IP67 CNC Aluminum Housing for Harsh Flight Environments
Universal Compatibility and Fast Plug-and-Play Integration. Designed for broad RC ecosystem compatibility:
- Supports 5–16V DC input
- SMA / RP-SMA connector options
- Compatible with DJI, Yuneec, XIRO, 3DR, Parrot platforms
- Includes adapter cables and mounting Velcro
- No software or firmware configuration required
Typical installation topology:
Controller → Booster → External Antenna → Drone Link
Compliance, Safety, and Support
- CE / FCC / RoHS compliant
- OEM / ODM customization supported
- 1-year limited warranty
- Multilingual installation documentation available
Safety notes:
Do not operate near sensitive medical equipment or explosive environments. Ensure correct antenna connection before powering the unit.
【If you have any questions, please feel in touch with us for expert technical advice!】
| Specification | Details |
|---|---|
| Operating Range | 2.4 ~ 2.5 GHz |
| Operating Mode | Bi-directional, half-duplex, time division duplex (senses RF and switches between receiving and transmitting modes) |
| Connector Type | SMA Receptacle 50ohm, To radio SMA female (hole inside), To antenna RP-SMA female (pin inside) |
| Input Power | 0 ~ 20 dBm |
| Transmit Gain | 15-18 dB |
| Output Power | 3000mW (35dBm) |
| Receiver Gain | ≤ 12 dB |
| Noise Figure | ≤ 3.5 dB typical |
| Frequency Response | ±1 dB over operating range |
| Supported Voltages | 5V ~ 16V/2A DC |
| Operating Temperature | -20°C to + 70°C |
| Operating Humidity | Up to 75% relative humidity |
| Material | Cast Aluminum |
| Booster Weight | 46g |
| Booster Size | 7.3 x 3.8 x 1 cm |
| Package Weight | 180g |
| Package Size | 12 x 11 x 6.5 cm |

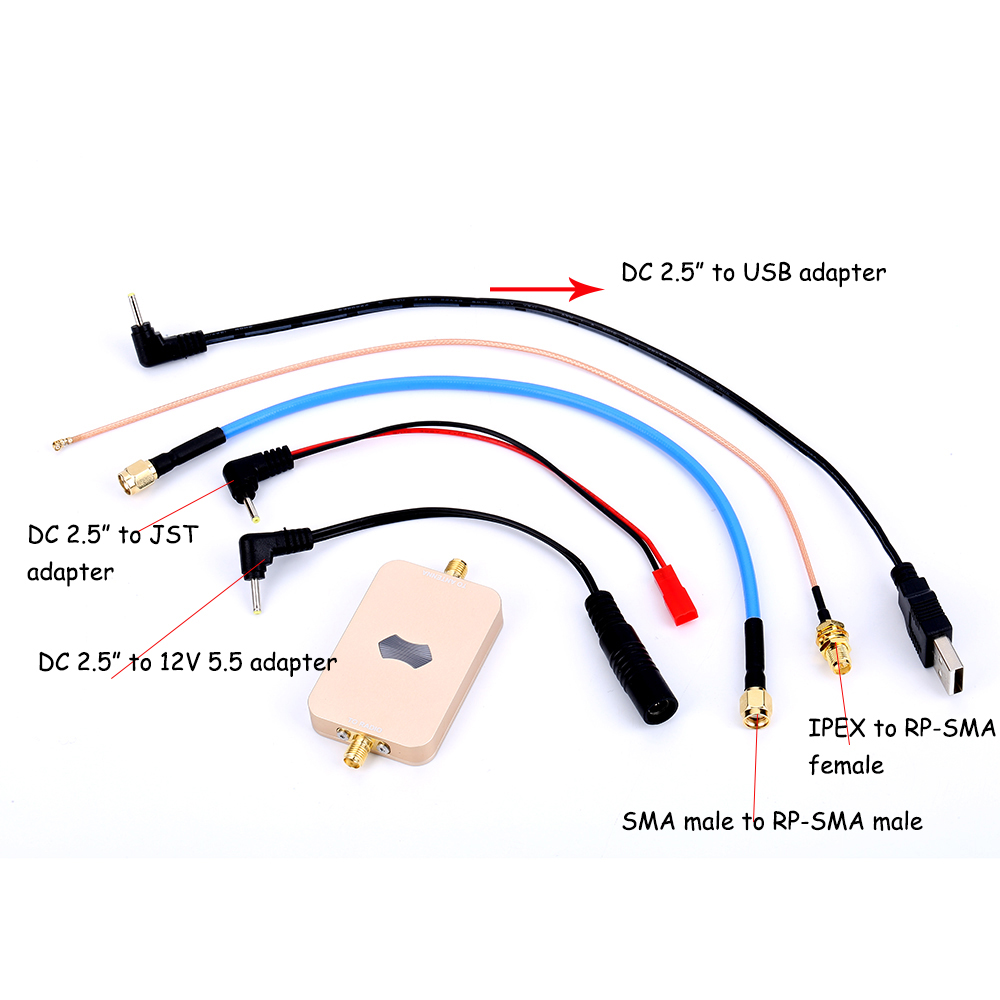

Package Contents:
| Item | Quantity |
|---|---|
| SH-RC24G3W eSunRc WiFi Booster | 1 x |
| RG141 20cm Cable SMA Male to RP-SMA Male | 1 x |
| DC 2.5” to 12V 5.5” Adapter | 1 x |
| DC 2.5” to USB Adapter | 1 x |
| DC 2.5” to JST Adapter | 1 x |
| Mounting Velcro | 1 x |
| User Manual | 1 x |
